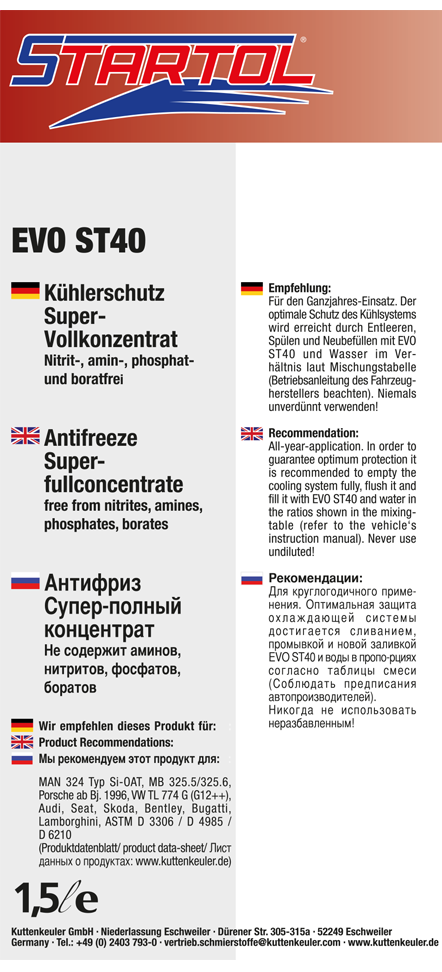

EVO ST40 is a full concentrate radiator protection and heat transfer agent based on ethylene glycol for summer and winter operation, which enables maintenance‑free protection against frost, overheating and rust formation (long‑life radiator protection). EVO ST40 is a new radiator protection and heat transfer agent with high‑quality corrosion additives for the engine and cooling system and meets the current requirements of many OEMs. EVO ST40 contains an inhibitor package based on silicate and salts of organic acids (Si‑OAT coolant). EVO ST40 is free of nitrite, amine, phosphate and borate.
Properties
compatibility with varnishes
foam prevention
Compatibility with hose and sealing materials
Improved heat transfer
Environmentally friendly due to longest service life
Silicate‑stabilized, ie no gelling or flocculation
formation of a constant and homogeneous protective layer
Longlife radiator protection
Suitable for mixed fleets: Product for cars, trucks and construction machinery
Suitable for/ we recommend this product for
AFNOR
NFR 15‑601
ASTM
D 3306, D 4985
SAE
J 1034
JIS
K 2234:2206
BS
6580:2010
We recommend this product for
AS
2108‑2004
AUDI/BENTLEY/BUGATTI/LAMBORGHINI/ SEAT/SKODA/VW
(TL 774‑G) (G12++)
CHINA
GB 29743‑2013
CUMMINS
(CES 14603)
CUNA
NC 956‑16
DEUTZ
(DQC CC‑14)
DEUTZ‑FAHR
(> 04/2017)
DUCATI
FAUN
IRIZAR
(> 09/2016)
LIEBHERR
(Minimum LH‑01‑COL3A)
MAN ENERGY SOLUTIONS
(BASF‑CW‑GLY00 G40‑01)
MAN TRUCK & BUS
( MAN 324 Typ Si‑OAT)
MB
325.6
MB
326.6 Ready Mix
MERCEDES‑BENZ TRUCK & BUS
(MB 325.5) (326.5 Ready Mix)
MTU
(MTL 5048)
ÖNORM
V 5123
PN‑C
40007:2000
PORSCHE
(TL 774‑G)
SANS
1251:2005
SETRA
(MB 325.5) (326.5) Ready Mix)
TADANO
Use
Antifreeze ANF KK40 is excellent for engines made of cast iron, aluminum, iron alloys or a combination of these metals and in cooling systems made of aluminum or copper alloys.
Antifreeze ANF KK40 is particularly recommended for light alloy engines where special aluminum protection is required at higher temperatures.
Antifreeze ANF KK40 should be mixed with water before being added to the cooling circuit and used in a concentration of 33 to max. 60%. It is recommended to use a 50/50 ratio for the mixture of water and Antifreeze ANF KK40 .
cold protection / frost protection
50 vol. % in water below ‑38°C
33 vol. % in water below ‑18°C
Can be used in hybrid vehicles and battery‑powered electric vehicles provided there are no requirements for electrical conductivity.
Manufacturer instructions must always be observed.
Miscibility
EVO ST40 Since the special application advantages of EVO ST40 only when used alone EVO ST40 Mixing with other coolant is not recommended. Softened water is the preferred method for preparing mixtures.
